ECOSOFT МО30000 4″

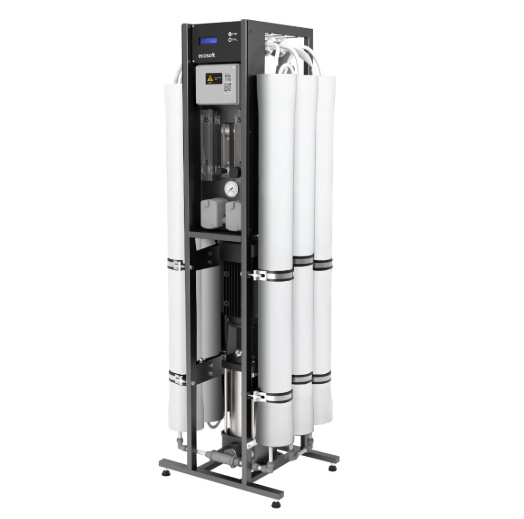

Industrial reverse osmosis system with high performance - up to 1500 l/h. Provides a high standard of purified water quality up to drinking water level. Due to its very compact dimensions, the system is suitable even for small rooms.
Performance: up to 1500 l/h
Dimensions: 1480 x 495 × 395 mm
Weight: 95 kg
For more information, please call - +971 56 33 99 560
.
Performance: up to 1500 l/h
Dimensions: 1480 x 495 × 395 mm
Weight: 95 kg
For more information, please call - +971 56 33 99 560
.
Price on request
Add to compare
Industrial reverse osmosis system for commercial water purification, provides high quality standards of purified water, removing all impurities. A special American-made membrane neutralizes up to 99% of all bacteria and viruses that may be in the source water.
At the outlet, the water is purified to the level of bottled water. High productivity - up to 1500 l / h, allows you to use the system in various fields of activity. At the same time, the system is energy efficient, and reduces energy consumption by up to 43%.
Due to the special compactness of the system - 1480 x 495 × 395 mm, a separate room is not required. The unit can be placed even in the smallest room.
The design of the system significantly simplifies the processes of maintenance and replacement of replaceable modules. The built-in controller displays all information about the operation and helps to regulate the switching on and off of the system, automatic washing of membranes, a complete stop of work in emergency situations.
Equipment
At the outlet, the water is purified to the level of bottled water. High productivity - up to 1500 l / h, allows you to use the system in various fields of activity. At the same time, the system is energy efficient, and reduces energy consumption by up to 43%.
Due to the special compactness of the system - 1480 x 495 × 395 mm, a separate room is not required. The unit can be placed even in the smallest room.
The design of the system significantly simplifies the processes of maintenance and replacement of replaceable modules. The built-in controller displays all information about the operation and helps to regulate the switching on and off of the system, automatic washing of membranes, a complete stop of work in emergency situations.
Equipment
-
High-quality European-made pump Grundfos CR 3-15
-
Composite membrane holders
-
Electric panel with Ecosoft OC5000 controller
-
Danfos solenoid valve
-
Pipelines
-
Ecosoft ELP4040 membranes
-
Steel frame
Technical specifications
Capacity: up to 1500 l/h
Permeate output: 75%
Water flow at the input: up to 2500 l/h
Maximum TDS: 3000 mg/l
Membranes: 6x4040
Working pressure: 8-10 bar
Maximum pressure: 14 bar
Power supply: 230 V, 50 Hz
Power: 1.4 kW

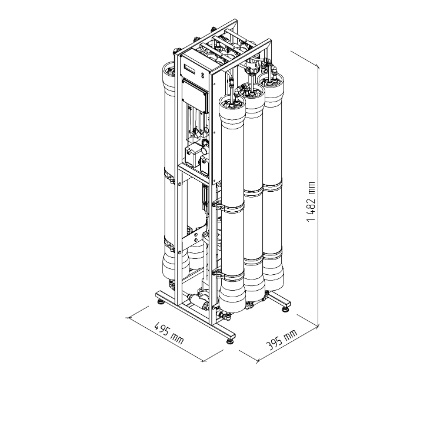

Dimensions: 1480 x 495 × 395 mm
Weight: 95 kg
Connections
incoming water: 3/4"
permeate: 1"
concentrate: ½"
Capacity: up to 1500 l/h
Permeate output: 75%
Water flow at the input: up to 2500 l/h
Maximum TDS: 3000 mg/l
Membranes: 6x4040
Working pressure: 8-10 bar
Maximum pressure: 14 bar
Power supply: 230 V, 50 Hz
Power: 1.4 kW
Dimensions: 1480 x 495 × 395 mm
Weight: 95 kg
Connections
incoming water: 3/4"
permeate: 1"
concentrate: ½"
