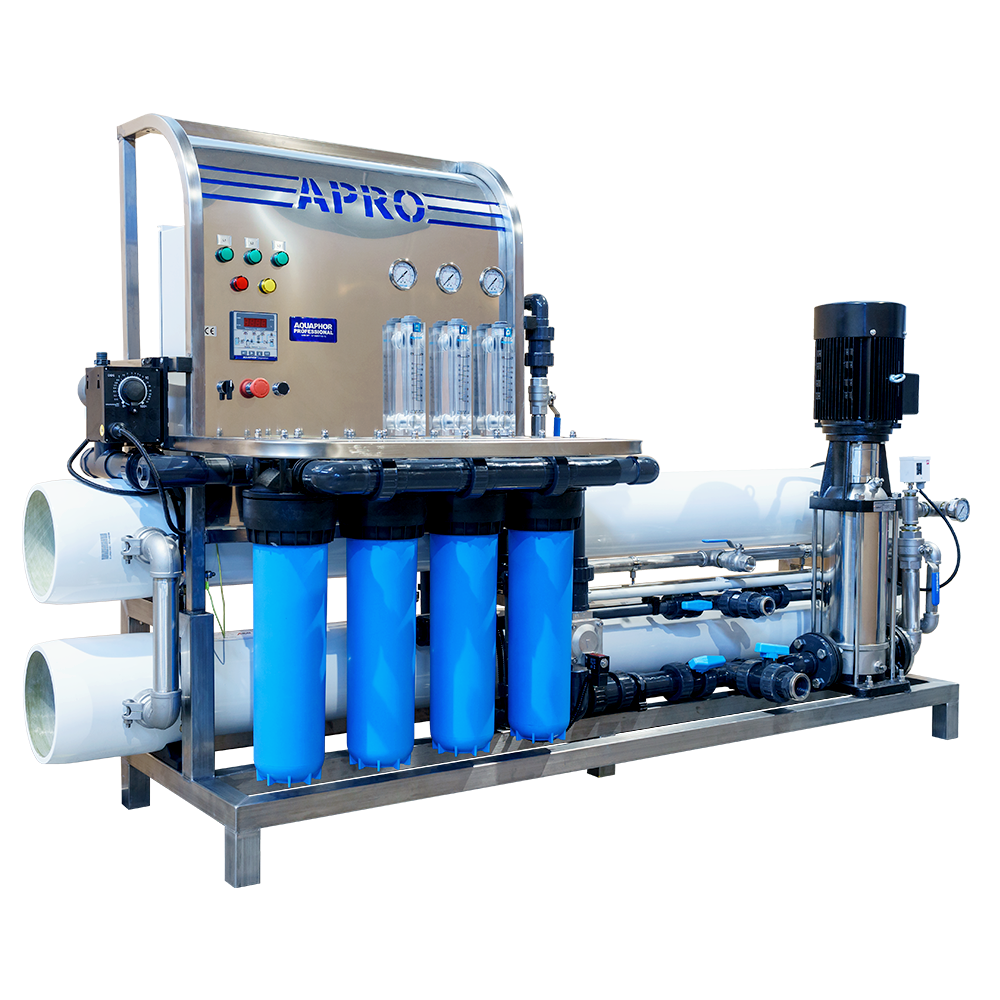

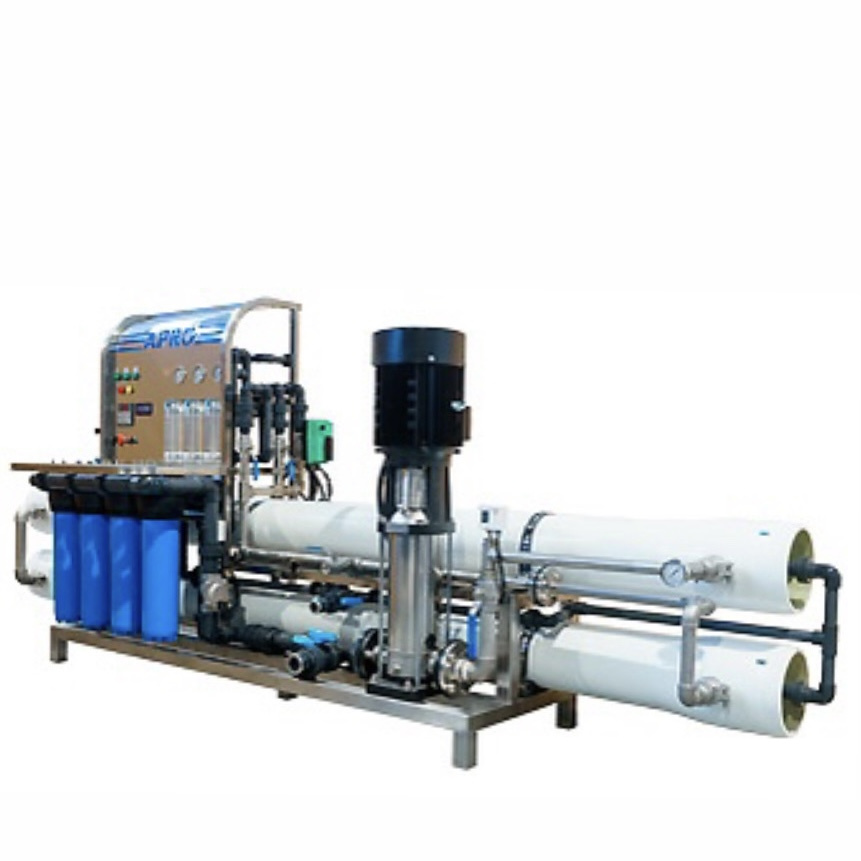

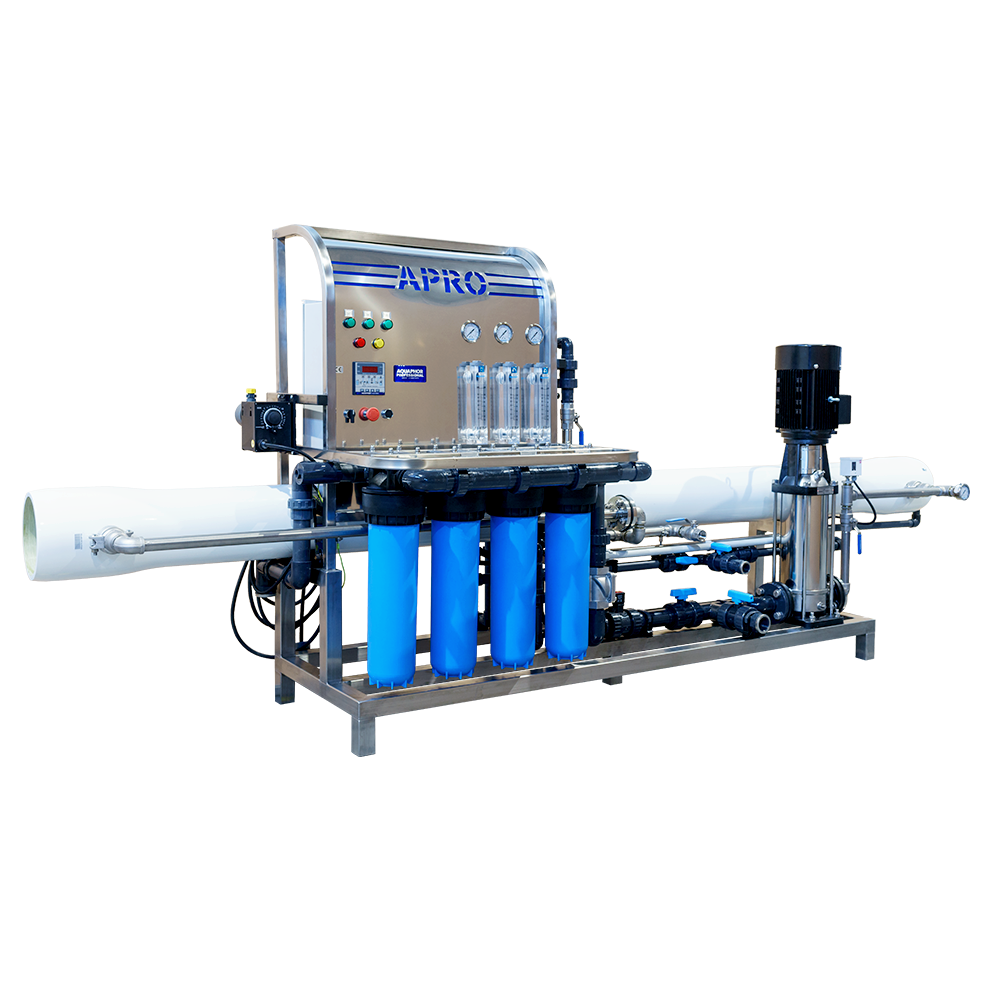

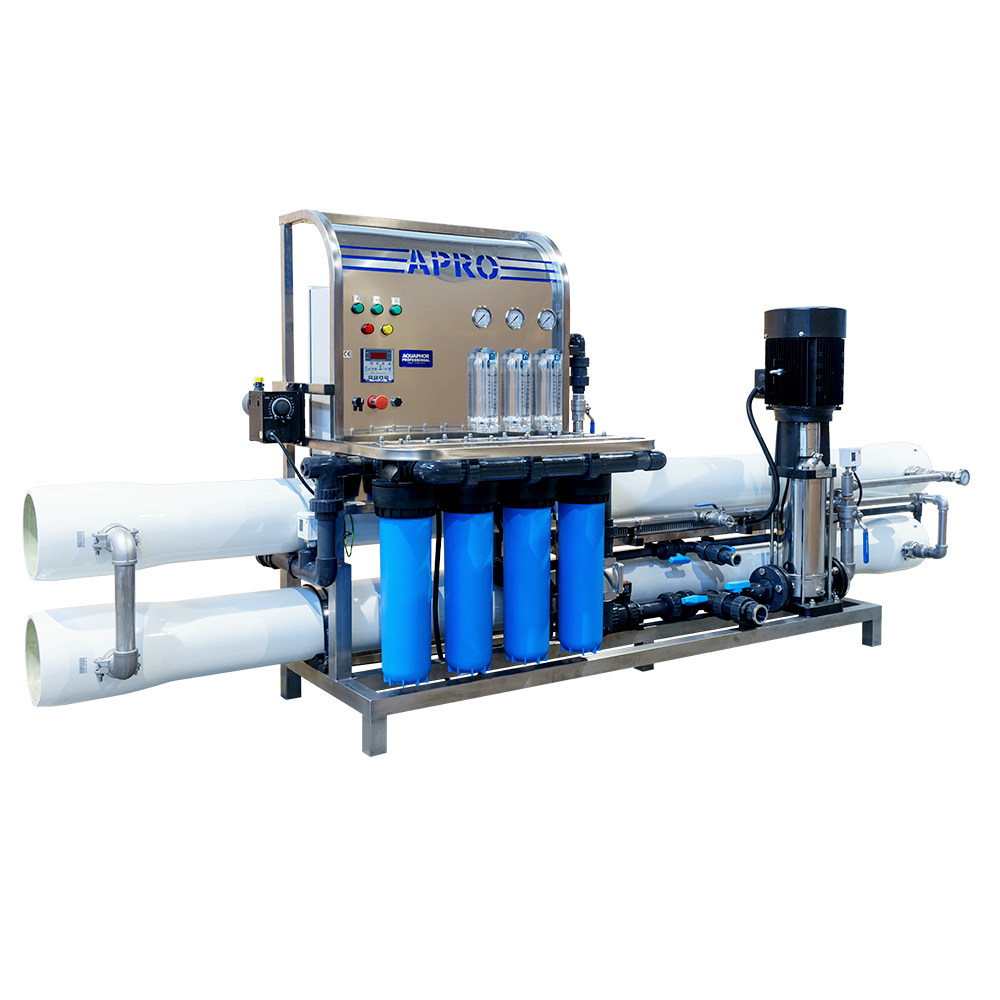

APRO CT series
High-pressure industrial RO systems with increased productivity for desalination - reduction of total salt content - of water.
Each system provides reliable, uninterrupted, energy-efficient and quiet operation. The systems characterized by low operating costs and easy maintenance. Systems can be delivered as a container water treatment station.
Productivity: from 3,000 to 6,000 l/h
For more information, please, call - +971 56 33 99 560
.
Each system provides reliable, uninterrupted, energy-efficient and quiet operation. The systems characterized by low operating costs and easy maintenance. Systems can be delivered as a container water treatment station.
Productivity: from 3,000 to 6,000 l/h
For more information, please, call - +971 56 33 99 560
.
Price on request
Add to compare
High-performance RO systems for commercial desalination of drinking water. Provide high quality purified water and uninterrupted, energy-efficient and silent operation. With high productivity from 3000 l/h to 6000 l/h, systems characterized by low operating costs.
SYSTEM EQUIPMENT
• Stainless steel frame and equipment panel
• Stainless steel 316 high pressure piping
• 5 micron pre fi ltration
• Energy saving GE AK-series brackish water high rejection membranes
• Multi-stage centrifugal stainless steel 316 Grundfos pump
• Fully equipped electric board with pump protection and soft starter
• Clean-in-Place integrated valves
• Grundfos DDE antiscalant dosing pumps
• FRP side port membrane housings
• Motorized feed valve and fl ush valve
• Stainless steel 316 regulation valves
• MP controller for quality monitoring
• High pressure shutoff
• Double low pressure shutoff
• Permeate conductivity SS 316 sensor
• RAW-water pump control relay
• Permeate tank level monitoring
• Alarms: low inlet pressure, low feed pressure, high permeate conductivity, motor fault, high concentrate pressure
OPTIONAL FEATURES
• Supply pumps and storage vessels
• Integrated ABB PLC and color touch screen display with remote control kit
• UF pre-treatment
• Nalco antiscalant
 APRO СТ 3000 |
 APRO СТ 4000 |
 APRO СТ 6000 |
|
|---|---|---|---|
|
Filtration rate
l/h |
3000 | 4000 | 6000 |
| Membranes | 3х8040 | 4х8040 | 6х8040 |
| Max salt content mg/l |
6000 | 6000 | 6000 |
| Salt reduction | 99,5% | 99,5% | 99,5% |
| Input flow m3/h |
6 | 8 | 12 |
| Drainage return | 50-95% | 50-95% | 50-95% |
| Power supply | 380V,50Hz | 380V,50Hz | 380V,50Hz |
| Pre-filtration | 4xLD0520 | 4xLD0520 | 4xLD0520 |
|
Dimensions
mm |
3640x1465x805 | 2650x1465x805 | 3640x1465x805 |
SYSTEM EQUIPMENT
• Stainless steel frame and equipment panel
• Stainless steel 316 high pressure piping
• 5 micron pre fi ltration
• Energy saving GE AK-series brackish water high rejection membranes
• Multi-stage centrifugal stainless steel 316 Grundfos pump
• Fully equipped electric board with pump protection and soft starter
• Clean-in-Place integrated valves
• Grundfos DDE antiscalant dosing pumps
• FRP side port membrane housings
• Motorized feed valve and fl ush valve
• Stainless steel 316 regulation valves
• MP controller for quality monitoring
• High pressure shutoff
• Double low pressure shutoff
• Permeate conductivity SS 316 sensor
• RAW-water pump control relay
• Permeate tank level monitoring
• Alarms: low inlet pressure, low feed pressure, high permeate conductivity, motor fault, high concentrate pressure
OPTIONAL FEATURES
• Supply pumps and storage vessels
• Integrated ABB PLC and color touch screen display with remote control kit
• UF pre-treatment
• Nalco antiscalant
